84V 8A Lithium Battery Charger - For 72V battery
Output Voltage - DC 84V
Output Current - 8A
Supported Battery - 72V Lithium ion (20S) & Lithium Phosphate (23S,24S)
Charging Mode - CC/CV
Charging Indication - 2 Light, Led Indication
Enclosure Material - Allumunium metal enclosure
Output Connector - C13 Female 3 pin
Warranty* - 1 Year Standard
(Including GST and Transportation)
For bulk and B2B enquiries kindly mail us at Sales@e-rexindia.com
🔋 84V 8A Lithium Battery Charger – For 72V Battery Packs
This premium-grade 84V 8A charger is specially designed for charging 72V lithium battery packs efficiently, safely, and reliably. Built with a durable aluminum casing and superior internal components, this charger ensures stable performance even under continuous use.

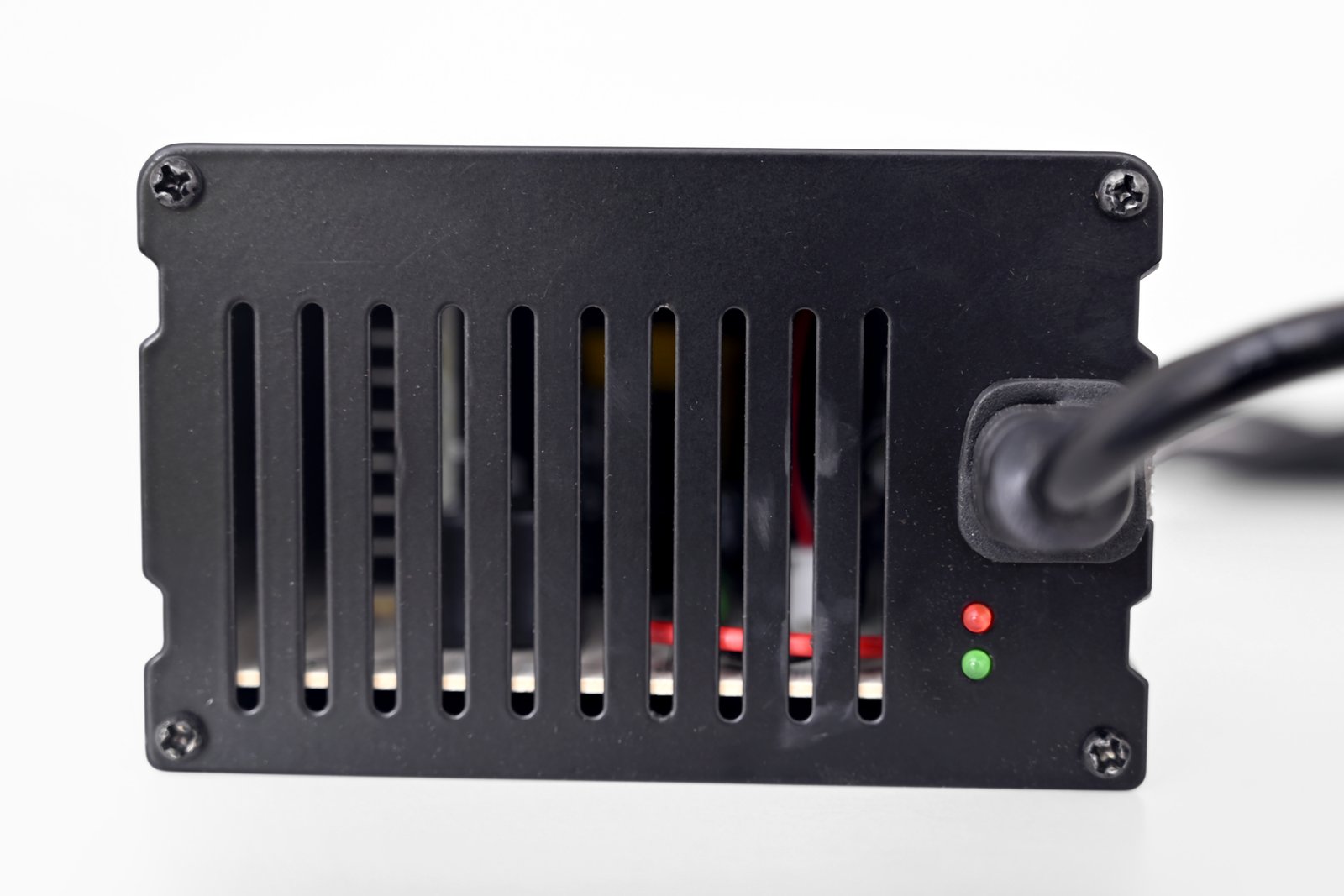

It features dual LED indicators for real-time charging status—Red for charging, Green for fully charged or standby—making it user-friendly and easy to monitor.
✅ Key Features:
-
Output Voltage: 84V DC
-
Output Current: 8 Amps
-
Battery Compatibility: 72V Lithium Battery Packs (NMC, Li-ion, etc.)
-
Case Material: Aluminum – lightweight, strong, and heat-resistant
-
LED Indicators:
-
🔴 Red – Charging
-
🟢 Green – Fully Charged / Ready
-
-
Smart Charging: Automatic cut-off when battery is fully charged to protect battery life
-

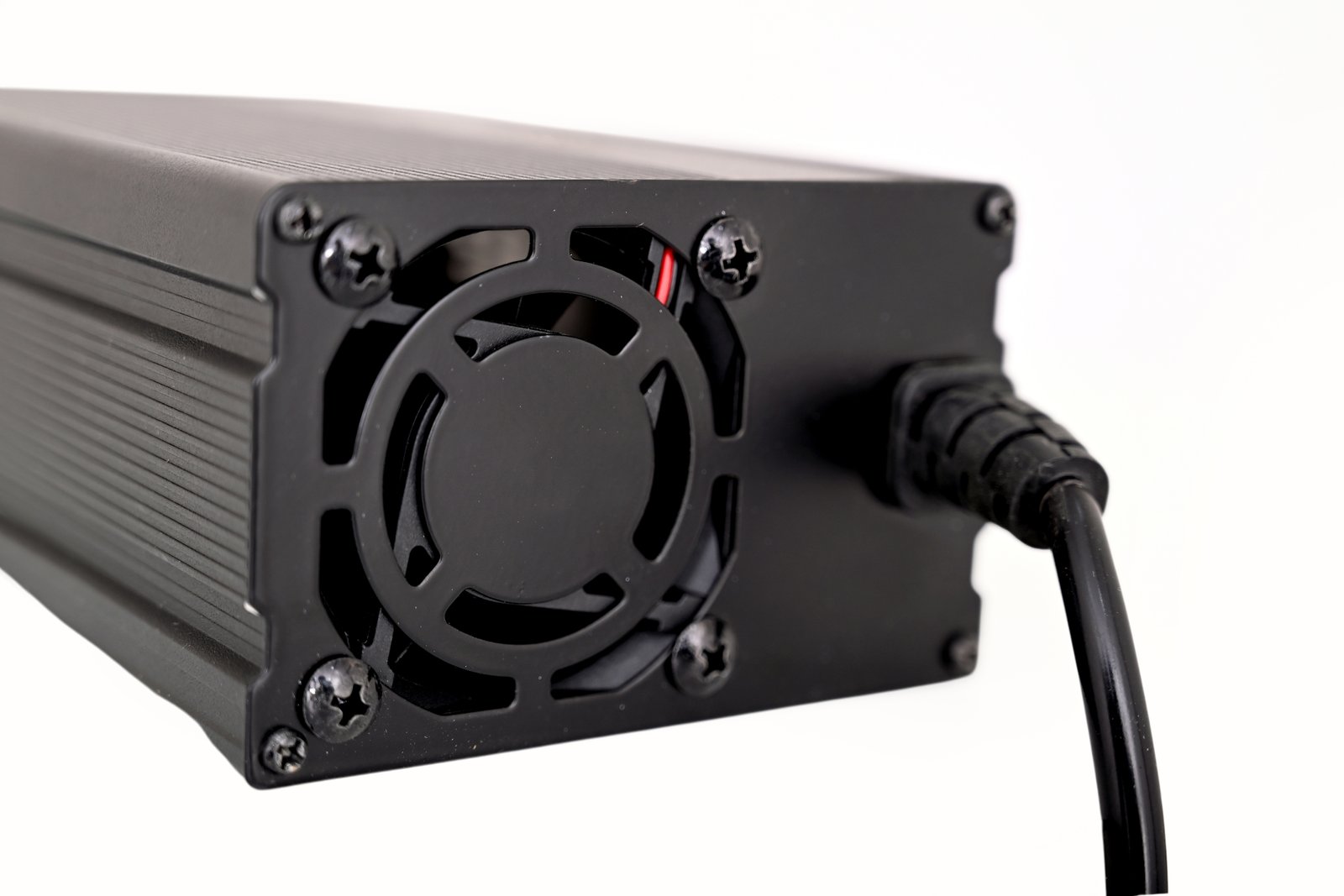

Cooling System: Built-in fan and ventilated aluminum shell for efficient heat dissipation
-
Built Quality: High-grade, reliable components for long-term durability and performance
-
Protection Features: Over-voltage, over-current, short-circuit, and reverse polarity protection
🛠️ Applications:
-
Electric Scooters
-
E-Rickshaws
-
Electric Bikes
-
Lithium Battery Packs for Mobility & Storage
-
Workshop/Service Use and Battery Testing Stations
Package Includes :
1* 72V 8A Lithium charger with 2 Light LED Indication , Maximum Output Voltage - 84V
| Input Voltage | AC 180-240V 50 Hz |
| Output Voltage | DC 84V |
| Output Current | 8A |
| Input Connector | AC Power Cord IEC D 6A |

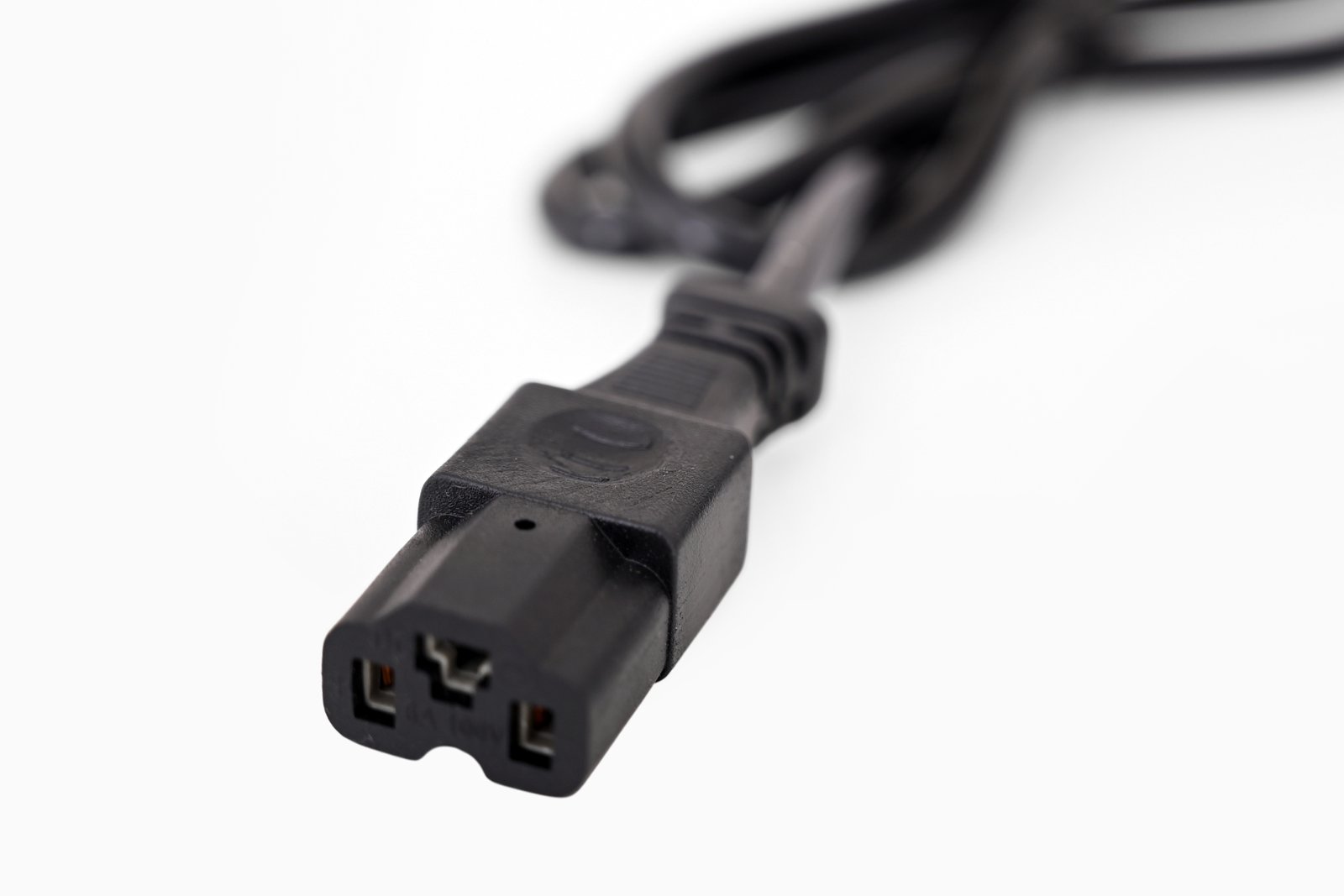

| Output Connector | C13 Female 3 Pin |
| AC Cord Length | 80 CM |
| DC Cord Length | 70 CM |
| Enclouser Size | 18 * 8 * 6 ( L * W * H ) CM |
| Enclouser Type | Allumunium metal enclosure |
| Cooling Method | Air Cooling - 5V DC Fan |
| Charging Indiaction | 2 Light Charging Indicator |
| Charging Methods | CC/CV |
| Fuse Protection | Yes |
| Supported Battery | 20S in NMC and 23S In LFP Chemistry |
| OverCurrent Protection | Yes |
| High Temprature Protection | Yes |
| Weight | ~900G |
1 Year Warranty
This item is covered with a standard warranty of 1 Year from the time of Purchase against manufacturing defects only. This warranty is given for the benefit of E-Rex customers from any kind of manufacturing defects. Reimbursement or replacement will be done against manufacturing defects.
What voids warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
